Desktop CNC Router Buying Guide for Woodworking

Desktop CNC routers are marketed on cutting area and price, which are the two specifications that predict the least about the results. What actually decides whether a machine produces clean parts is rigidity, spindle speed range, and how honestly the controller handles the feeds you ask of it. This guide works through the specifications in the order they matter, using published machine documentation and controller firmware behaviour rather than any claim about a particular brand being better.

Rigidity is the specification nobody prints

Every desktop machine is a compromise between a moving gantry and the forces a cutter puts on it. A cutting tool pushes sideways against the work; the frame flexes; the flex shows up in the part as tapered walls, wandering cuts and chatter marks long before anything breaks.

Rigidity is not on the spec sheet, but its proxies are.

Extrusion size and gantry span. A wider machine with the same extrusions is a less rigid machine, because the unsupported span between the uprights is longer. A 24 by 24 inch machine and a 48 inch machine built on the same rail section are not equivalent, and the wide one will need shallower passes for the same finish.

Z axis design. The Z assembly is the most common weak point, because it is a cantilever hanging off the front of the gantry. Look at how far the spindle sits in front of the rails and how much travel is exposed at full depth. A tall Z travel figure is worth less than it sounds if the tool has to hang a long way out to use it.

Motion system. Belt drive is cheap, quiet and reasonably fast, but belts stretch and belt driven gantries have measurable compliance under load. Leadscrews and ballscrews are stiffer and hold position better under cutting force at the cost of speed and, in the case of ballscrews, money. Rack and pinion appears on larger machines where a screw would be too long to stay stable.

Linear guidance. V-wheels rolling on an extruded rail are the budget standard and work; profile linear rails with recirculating ball blocks are considerably stiffer and better sealed against wood dust. This is one of the clearer dividing lines between price tiers.

The reason to care so much about frame stiffness on a small machine is that it, not the cutter, sets the limit on depth of cut. That relationship is worked through in climb vs conventional and stepover on a CNC router.

Cutting area: match it to sheet goods, not to ambition

Cutting area is the specification buyers over-weight most. Two practical notes.

First, usable area is smaller than advertised. Clamps, tabs and the workholding you actually use eat into the envelope, and the stated X and Y travel rarely accounts for a bit that has to reach past the edge of the stock.

Second, a cutting area slightly smaller than your material is not fatal. Tiling, cutting a large part in sections with an indexed re-fixture, is a standard technique that most CAM packages support directly. Buying a much larger and therefore floppier machine to avoid tiling is usually the wrong trade for a woodworking shop, because it costs rigidity on every job in exchange for convenience on a few.

A useful sizing question is what you will cut most often. Cabinet parts from half sheets, small signs, and instrument or box work each imply a very different envelope, and the smallest machine that covers your common case will cut better than the largest machine you can afford.

Z clearance deserves a separate look: the gap between the spoilboard and the gantry sets the thickest stock you can put under the machine, and it is not the same number as Z travel.

Trim router or VFD spindle

Most entry machines mount a compact trim router. Most machines above the entry tier offer a VFD driven spindle, usually water or air cooled, in the 800 W to 2.2 kW range. The differences that matter for wood are not primarily about power.

Minimum RPM. A trim router’s variable speed dial typically bottoms out around 10,000 RPM. A VFD spindle commonly runs down to 6,000 RPM or lower. That single figure decides whether you can reach the chip load your tooling manufacturer recommends: feed rate equals RPM times flutes times chip load, so a high minimum RPM forces either an impossibly high feed rate or a chip too thin to cut cleanly. The full arithmetic and the material ranges are in the CNC chip load chart for wood.

Noise. A trim router at 20,000 RPM is loud enough to dominate a shop, and it runs for the entire job rather than in bursts. Water cooled spindles are dramatically quieter, and on a machine used in a garage attached to a house that is often the deciding factor.

Duty cycle and runout. Universal motor trim routers are designed for intermittent handheld use, not for hours of continuous cutting, and their collets are not held to spindle tolerances. Lower runout means a longer cutter life and a better finish, particularly with small diameter bits.

Automatic control. A VFD spindle can be commanded on, off and to a specific RPM by the G-code program’s S word. A trim router has to be switched by hand or through a relay accessory. This is a workflow convenience rather than a quality issue, but it eliminates a common mistake: starting a program with the spindle off.

Water cooled spindles bring a pump, a reservoir and coolant lines into a woodworking shop, which is a maintenance obligation worth accepting deliberately rather than by surprise. Air cooled spindles avoid it at the cost of noise.

Controller and firmware

Most desktop machines run grbl or a close derivative on an Arduino class controller, and some run LinuxCNC or a vendor specific board.

The firmware setting that surprises people is the axis maximum rate. In grbl, $110, $111 and $112 cap the feed rate per axis, and the controller silently clamps any faster feed in the program down to that ceiling without warning. A CAM job posted at 300 IPM on a machine limited to 150 IPM will run at 150 IPM with half the intended chip load, and the burnt edges get blamed on the bit. Knowing your machine’s real feed ceiling before buying tooling is worth more than most accessories.

Acceleration settings matter almost as much on small parts. A machine with low acceleration spends most of a detailed toolpath ramping up and slowing down, so the average feed rate over the job is far below the programmed number, and the effective chip load drops with it.

Ask two questions about any candidate machine: can you read and change the firmware settings, and does it use a standard G-code dialect. A machine that only accepts files from one proprietary program will constrain your CAM choices for as long as you own it.

Software

The CAD, CAM and sender chain is a real cost even when the software is free. Entry machines usually ship with a vendor CAM package that is easy to learn and limited in toolpath strategy. Vectric’s products are the common upgrade in the woodworking world; Fusion’s manufacturing workspace is the common upgrade from the engineering side. What matters when comparing them is whether a correct post processor exists for your controller, because the post processor is what turns toolpaths into G-code your machine will accept.

Check the file format the machine’s sender expects before buying, not after.

Dust and safety

Wood dust is not a housekeeping problem. OSHA treats wood dust as a health hazard with exposure limits, and fine dust from MDF and hardwoods is the fraction that stays airborne longest and reaches deepest into the lungs. A CNC router generates it continuously, unattended, for the entire duration of a job.

Plan the dust collection at the same time as the machine, not later:

• A dust shoe or boot around the spindle, ideally with a brush skirt, captures at the source.
• A shop vacuum will keep a small machine tolerable; a proper dust extractor moves the air volume a larger one needs.
• A cyclone separator ahead of the vacuum keeps chips out of the filter and stops airflow collapsing mid job.
• Fine dust that escapes capture stays airborne for hours, so an air cleaner and a respirator remain useful even with good extraction.

Accumulated wood dust is also a fire and deflagration hazard, which is why it is addressed by fire codes as well as by health regulation. Keep the machine and the surrounding surfaces clean rather than letting dust build up on horizontal surfaces and inside the enclosure.

The general machine guarding and operating requirements for woodworking machinery in 29 CFR 1910.213 are written for industrial equipment, but the reasoning behind them, guarded cutters, controlled starts and no loose material near a spinning tool, applies directly to a benchtop machine.

Shop power

A router or spindle, a dust extractor and a controller running at once add up faster than people expect, and a shared 15 A circuit is a common cause of mid job power failures that ruin the part and sometimes the cutter.

The way to settle this is to measure the actual draw rather than adding up nameplate ratings, which are typically peak figures. A plug-in energy monitor such as the Kill A Watt P3 P4400 reports real amps and watts at the outlet, so you can check the combined load of the machine and the extractor under a real cut and decide whether the extractor needs its own circuit. Sustained load on a branch circuit should stay meaningfully below its rating rather than sitting at the limit.

Accessories worth buying, and what to skip

Worth it early:

• A touch probe or Z-zero plate. Setting tool zero by eye is the largest source of first-job scrap.
• A tool length setter, if the machine supports one. It makes multi tool jobs practical instead of tedious.

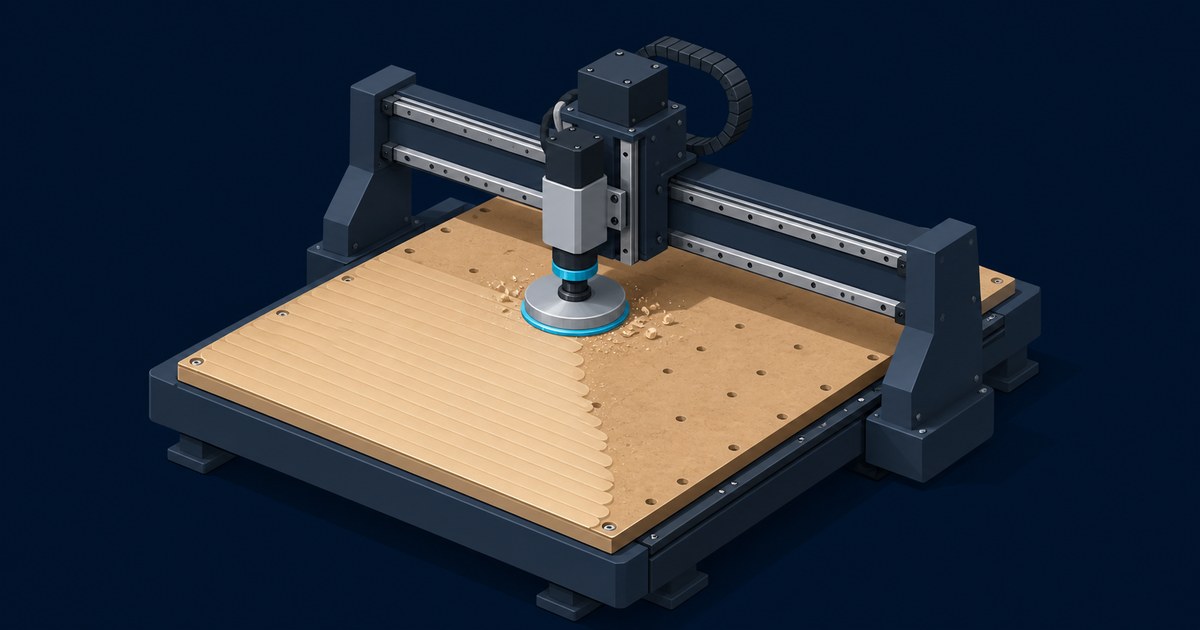

• A replaceable spoilboard, surfaced flat with a surfacing cutter after installation. A flat, sacrificial bed is a prerequisite for consistent through cuts.
• Real workholding. Cam clamps, low profile clamps, tape and glue, and a decent supply of them. A part that moves mid cut destroys the piece and often the tool.
• A small set of good bits rather than a large cheap set. A 1/4 inch upcut, a 1/4 inch downcut, a 1/8 inch upcut and a 60 or 90 degree V bit cover most woodworking jobs. Which geometry does what is covered in upcut vs downcut vs compression CNC router bits.

Worth deferring: a fourth axis, a laser module, an automatic tool changer, and a vacuum table. Each solves a problem you will not have until the basic machine is producing consistent parts.

A short buying checklist

1. What is the largest part you will actually cut, and does tiling cover the exceptions?
2. What is the minimum spindle RPM, and can it reach the chip load your tooling calls for?
3. Are the linear guides profile rails or V-wheels, and how long is the unsupported gantry span?
4. Can you read and change firmware maximum rate and acceleration values?
5. Does a supported post processor exist for the CAM software you intend to use?
6. Where does the dust go, and what powers the extractor?
7. What is the combined electrical load, and is the circuit adequate?

Once a machine is chosen, the next decision is what to run on it. Start with the ranges in the CNC chip load chart for wood and check them against your machine’s feed ceiling using the feed rate and chip load calculator.
